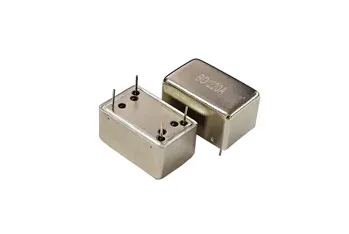

DIP (20.2mm*12.6mm), High Stability, Wide Temperature Range OCXO
Products
Explore Trending Topics

DIP (20.2mm*12.6mm), High Stability, Wide Temperature Range OCXO

BO1220
  • ocxo
  • oven controlled crystal oscillator
  • oven controlled crystal oscillator ocxo

LTE, BTS, CATV, LAN, GPS Tracking, Test & Measurement Equipment

BO1220 Download PDF Contact Us

Specifications of DIP(20.2mm*12.6mm), High Stability, Wide Temperature Range OCXO


SeriesBO1220H
Size20.2*12.6*11mm
Output WaveformLVCMOS，Sine Wave
Supply Voltage5.0V
Operating Temperature-0℃~+70℃，-20℃~+70℃，-40℃~+70℃，Customized
FeaturesTight Stability
Low Phase Noise
Dimensions20.2mm*12.6mm
Freq. Range10MHz~200MHz
Freq. Stability Range±3ppb~±500ppb
Phase Noise Range-170dBc/1kHz@10MHz
-165dBc/1kHz@100MHz


SeriesBO1220H
Size20.2*12.6*11mm
Output WaveformLVCMOS，Sine Wave
Supply Voltage5.0V，3.3V
Operating Temperature-0℃~+70℃，-20℃~+70℃，-30℃~+85℃，-40℃~+70℃，-40℃~+85℃，-50℃~+90℃，-55℃~+95℃，Customized


Application of DIP(20.2mm*12.6mm), High Stability, Wide Temperature Range OCXO


LTE, BTS, CATV, LAN, GPS Tracking, Test & Measurement Equipment


DIP(20.2mm*12.6mm), High Stability, Wide Temperature Range OCXO

DIP(20.2mm*12.6mm), High Stability, Wide Temperature Range OCXO
