VCXO
Products

A Voltage-Controlled Crystal Oscillator (VCXO) is a precision timing device that adjusts its output frequency based on an input control voltage. Widely used in telecommunications, data communications, and audio applications, VCXOs provide fine-tuning capabilities for synchronization and frequency stability in complex electronic systems.

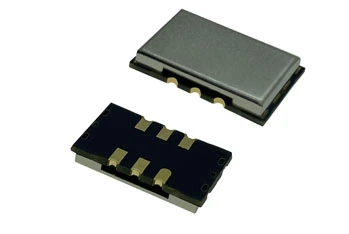

VCXO Types


How does a VCXO work?


A Voltage-Controlled Crystal Oscillator (VCXO) operates by leveraging the precise frequency characteristics of a quartz crystal resonator, which can be finely adjusted through an applied control voltage. The core component of a VCXO is the crystal, which naturally oscillates at a specific frequency due to its physical properties.


In a VCXO, the crystal is part of an oscillator circuit that includes a varactor diode, a type of variable capacitor. When a control voltage is applied to the varactor, its capacitance changes. This change in capacitance alters the resonant frequency of the crystal oscillator circuit. By varying the control voltage, the output frequency of the VCXO can be finely tuned within a narrow range around its nominal frequency.


This ability to adjust the frequency with high precision makes VCXOs ideal for applications requiring exact timing and synchronization, such as telecommunications, data communications, and audio processing. The fine-tuning capability ensures that the system can maintain stable and accurate frequency control, even in the presence of environmental variations or other external factors.


What are the advantages of using a VCXO?


  • Fine-Tuning Capability: VCXOs allow for precise adjustment of the output frequency through an applied control voltage. This fine-tuning is essential for applications like telecommunications and data communications, where exact timing and synchronization are critical.


  • High Stability: The quartz crystal in a VCXO provides excellent frequency stability over a wide range of temperatures and environmental conditions. This ensures reliable performance in demanding applications.


  • Low Phase Noise: VCXOs typically exhibit low phase noise, which is crucial for maintaining signal integrity in high-frequency applications. Low phase noise improves the overall performance of communication systems and reduces errors.


  • Versatility: VCXOs are versatile and can be used in various applications, including network synchronization, phase-locked loops (PLLs), and frequency modulation in signal processing.


  • Compact and Efficient: VCXOs are compact and energy-efficient, making them suitable for integration into modern electronic devices where space and power consumption are critical considerations.


FAQs of VCXO Voltage-Controlled Crystal Oscillator

  • Q: What are the common applications of VCXOs?

    A:

    VCXOs are commonly used in telecommunications, data communications, and audio equipment. They are essential for applications requiring stable and adjustable timing, such as network synchronization, phase-locked loops (PLLs), and frequency modulation in signal processing.

  • Q: What factors should be considered when selecting a VCXO?

    A:

     When selecting a VCXO, consider factors such as frequency range, control voltage range, phase noise, temperature stability, and output waveform. These parameters will determine the VCXO’s suitability for your specific application and its ability to maintain precise frequency control.
